Nickel Ore Beneficiation Process

The ore characteristics of nickel deposits are complex, often associated with minerals such as pyrite, galena, and sphalerite. Therefore, a single beneficiation process often fails to achieve the desired processing results. The design of combined flowsheets has become key to improving the efficiency of sulfide nickel ore beneficiation. So, what are the common beneficiation processes for nickel ores? What does the nickel ore beneficiation process flow entail? Today, we will share some insights on this topic.

I. Nickel Ore Beneficiation Process Flow

1. Crushing and Grinding

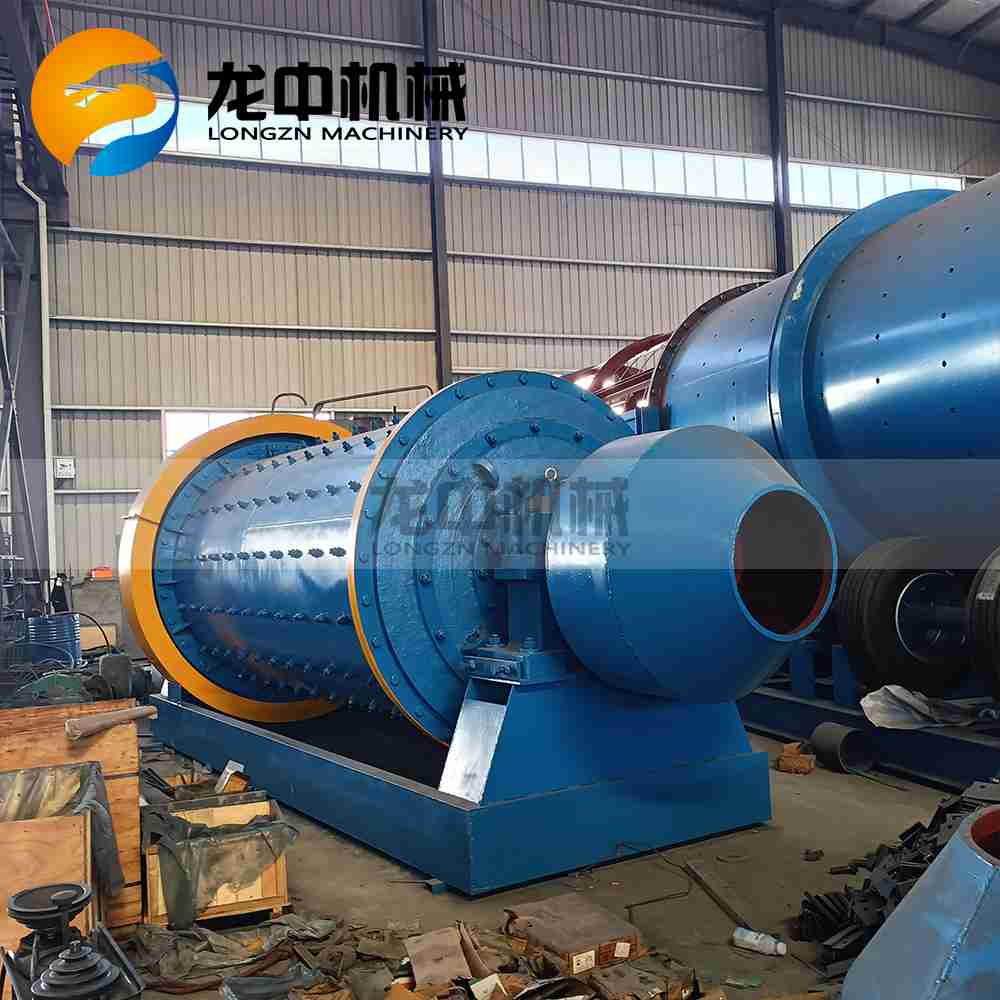

Crushing and grinding are the foundational steps in the beneficiation process. First, the ore undergoes primary crushing to achieve a particle size suitable for grinding. Then, grinding equipment is used to pulverize the ore, liberating the nickel minerals. During grinding, it is essential to control the particle size to ensure the effectiveness of subsequent flotation processes. Common grinding equipment includes ball mills and rod mills. Selecting appropriate grinding equipment and parameters is crucial for improving beneficiation efficiency.

2. Flotation Process

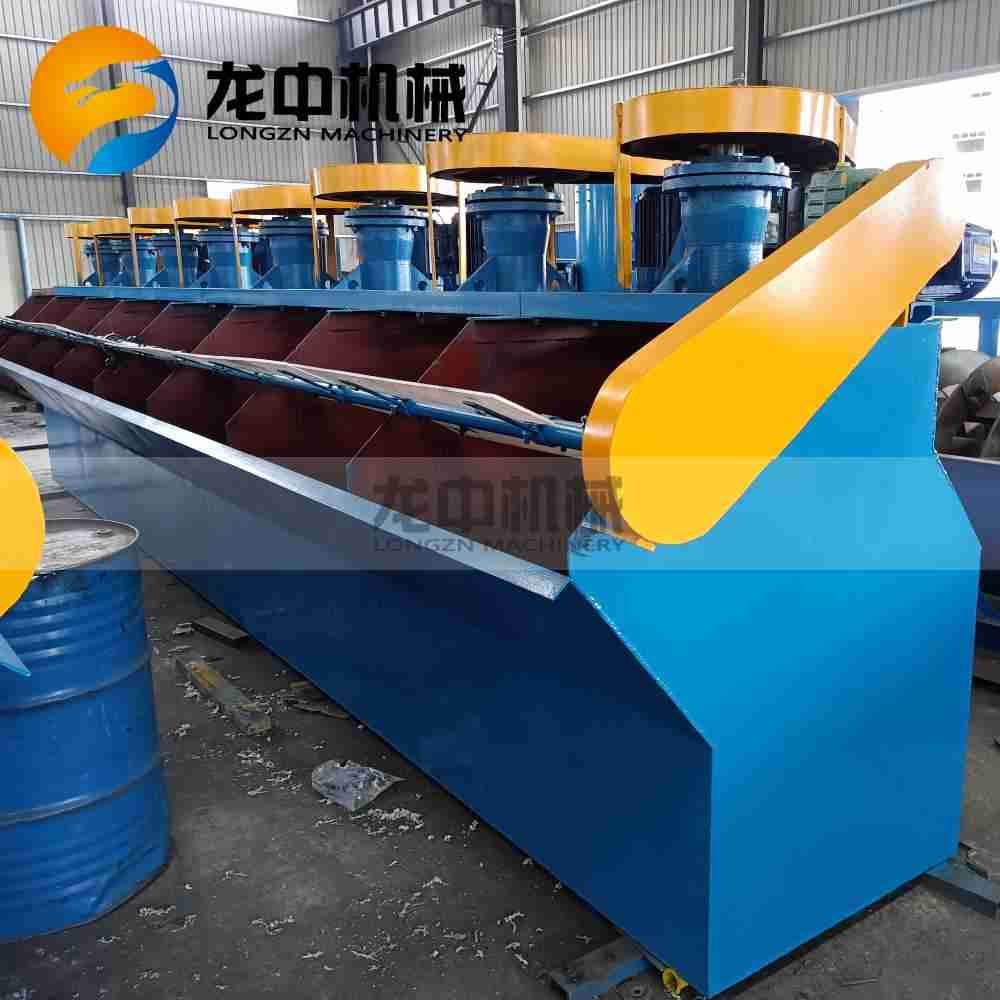

Flotation is the core process for sulfide nickel ore beneficiation. This process leverages differences in the physicochemical properties of mineral surfaces. By adding flotation reagents, nickel minerals are separated from gangue minerals. Commonly used flotation reagents include collectors, frothers, and modifiers. Optimizing the flotation process requires adjustments based on the specific characteristics of the ore to enhance nickel recovery and concentrate grade. For example, the flotation of sulfide nickel ores often employs the sulfidization flotation method, where a sulfidizing agent is added to sulfurize the surface of nickel minerals, followed by collectors to facilitate flotation.

3. Magnetic Separation Process

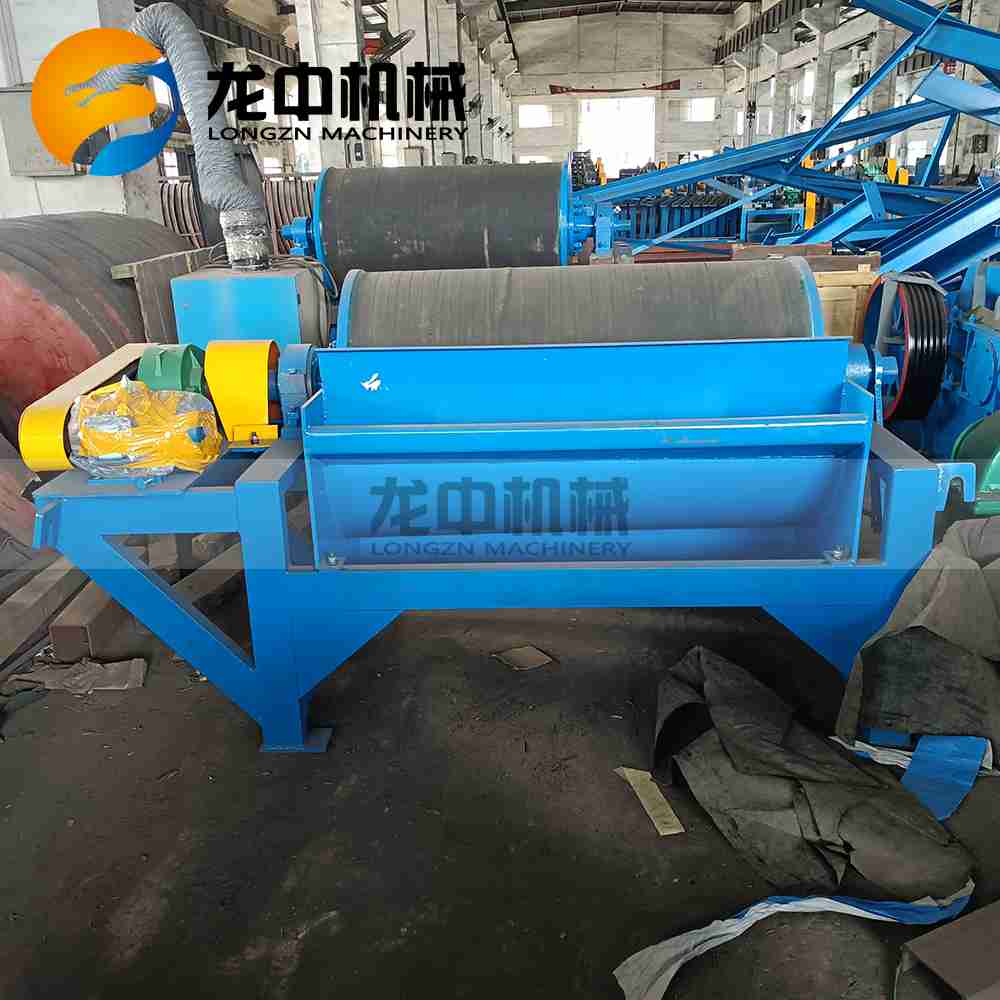

Magnetic separation utilizes differences in the magnetic properties of minerals to separate them using magnetic separation equipment. Sulfide nickel ores often contain magnetic minerals such as magnetite, which can be pre-concentrated or removed through magnetic separation. The advantages of magnetic separation include simple operation and low cost, but it requires ores with suitable magnetic properties and is typically used in combination with other processes. Common magnetic separation equipment includes permanent magnetic drum separators and electromagnetic separators. Selecting appropriate equipment and parameters is key to improving beneficiation efficiency.

4. Dewatering Process

Dewatering is the final step in the beneficiation process, primarily aimed at removing moisture from the concentrate to improve its grade and transportation efficiency. Commonly used dewatering equipment includes filters and filter presses. Optimizing the dewatering process requires adjustments based on the characteristics of the concentrate and production requirements to enhance dewatering efficiency and concentrate grade.

II. Combined Flowsheet Design
Due to the complex nature of sulfide nickel ores, a single beneficiation process often fails to achieve ideal results. Therefore, combined processes are frequently employed. Common combined processes include gravity separation-flotation and magnetic separation-flotation. By leveraging the advantages of each process, these combined methods improve nickel recovery and concentrate grade.

1. Gravity Separation-Flotation Combined Process

Gravity separation utilizes differences in the density of minerals to separate them using gravity separation equipment. This process is often used for pre-concentration and discarding large amounts of tailings to reduce the workload of subsequent processing. The gravity separation-flotation combined process can effectively enhance the beneficiation efficiency of sulfide nickel ores. The specific flow is as follows:

• Crushing and Grinding: The ore undergoes primary crushing to achieve a particle size suitable for grinding, followed by grinding to liberate the minerals.

• Gravity Separation: Pre-concentration is performed using gravity separation equipment to discard large amounts of tailings, reducing the workload for subsequent processing.

• Flotation: The gravity-separated ore undergoes flotation, where flotation reagents are added to separate nickel minerals from gangue minerals, improving nickel recovery and concentrate grade.

• Dewatering: Dewatering equipment is used to remove moisture from the concentrate, enhancing its grade and transportation efficiency.

2. Magnetic Separation-Flotation Combined Process

Magnetic separation utilizes differences in the magnetic properties of minerals to separate them using magnetic separation equipment. The magnetic separation-flotation combined process can effectively improve the beneficiation efficiency of sulfide nickel ores. The specific flow is as follows:

• Crushing and Grinding: The ore undergoes primary crushing to achieve a particle size suitable for grinding, followed by grinding to liberate the minerals.

• Magnetic Separation: Pre-concentration is performed using magnetic separation equipment to remove large amounts of non-magnetic minerals, improving the ore grade.

• Flotation: The magnetically separated ore undergoes flotation, where flotation reagents are added to separate nickel minerals from gangue minerals, improving nickel recovery and concentrate grade.

• Dewatering: Dewatering equipment is used to remove moisture from the concentrate, enhancing its grade and transportation efficiency.

The above is an introduction to nickel ore beneficiation. The beneficiation processes for nickel ores are complex and varied, requiring the selection of suitable process flows based on the specific properties of the ore and beneficiation requirements. The configuration of production lines and process choices should also be determined according to actual conditions. If you have more questions about ore processing, feel free to reach out for a detailed discussion!
