Log Washer Product Overview:
This spiral log washer is mainly used to wash the manganese ore, iron ore, phosphate and other minerals. It is usually used to clean and separate
the silt and stains from manganese ore, iron ore and other low-grade mineral. Features: Large capacity, convenient installation, simple operation,
low cost, high efficiency.
Log Washer Working Principle:
The spiral log washer drive the spiral stirring shaft depends on speed reducer and rotate in different directions, and the minerals which enter the
tank were washed by water and stir strongly by blade. The sewage was overflowed at the end of tank, the cleaned minerals were lifted up along
the blade and discharged at the beginning of tank.

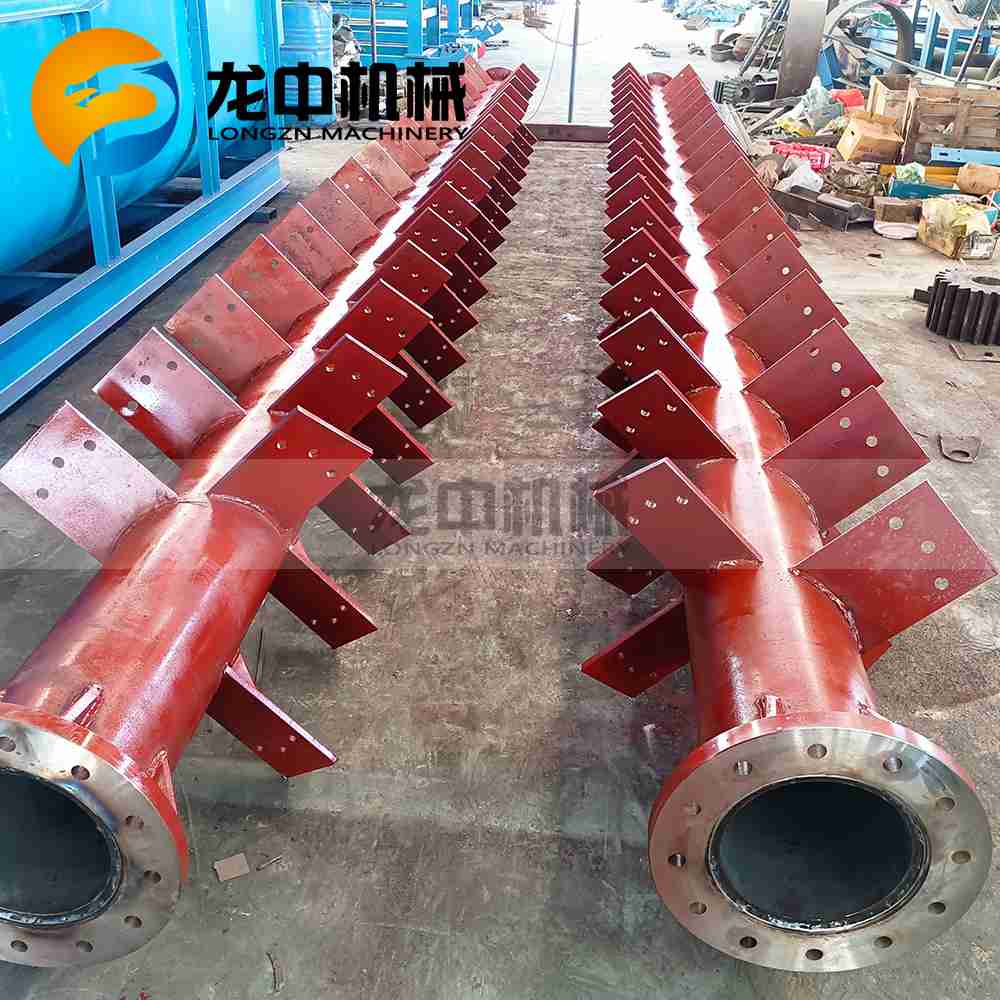

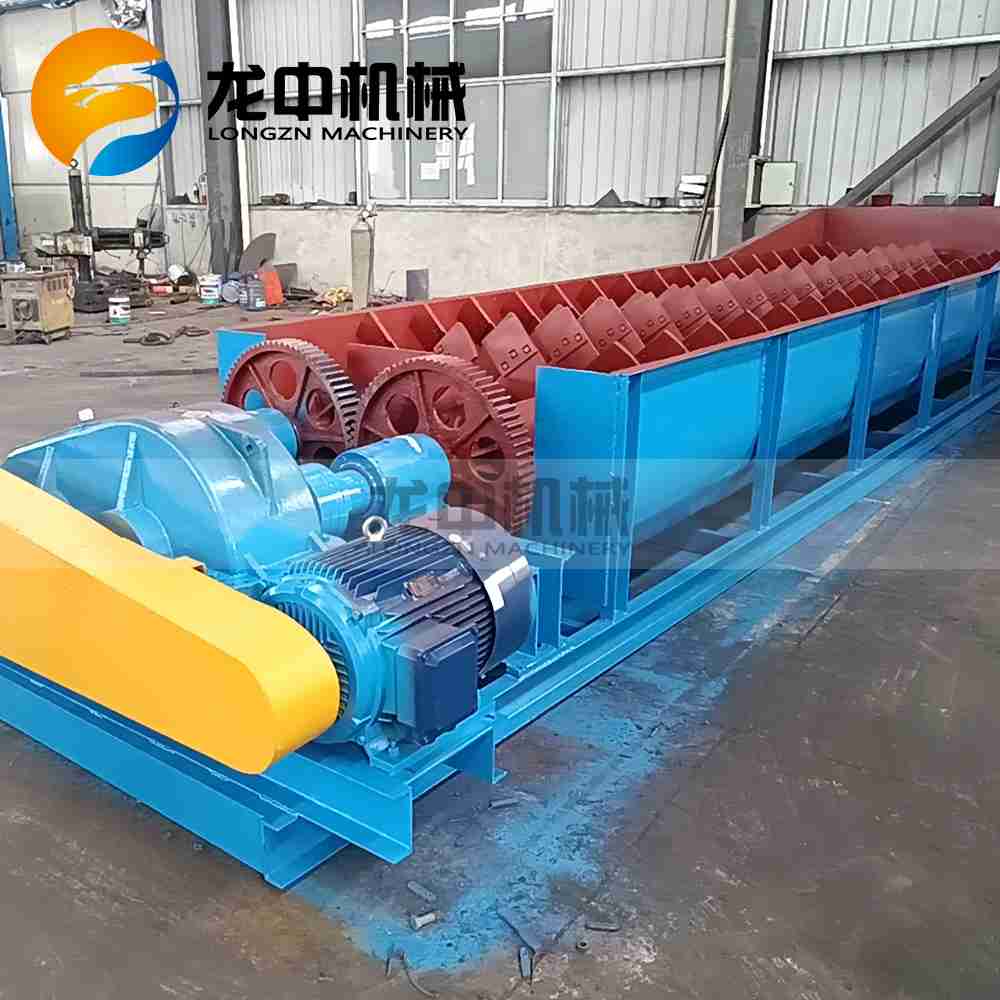

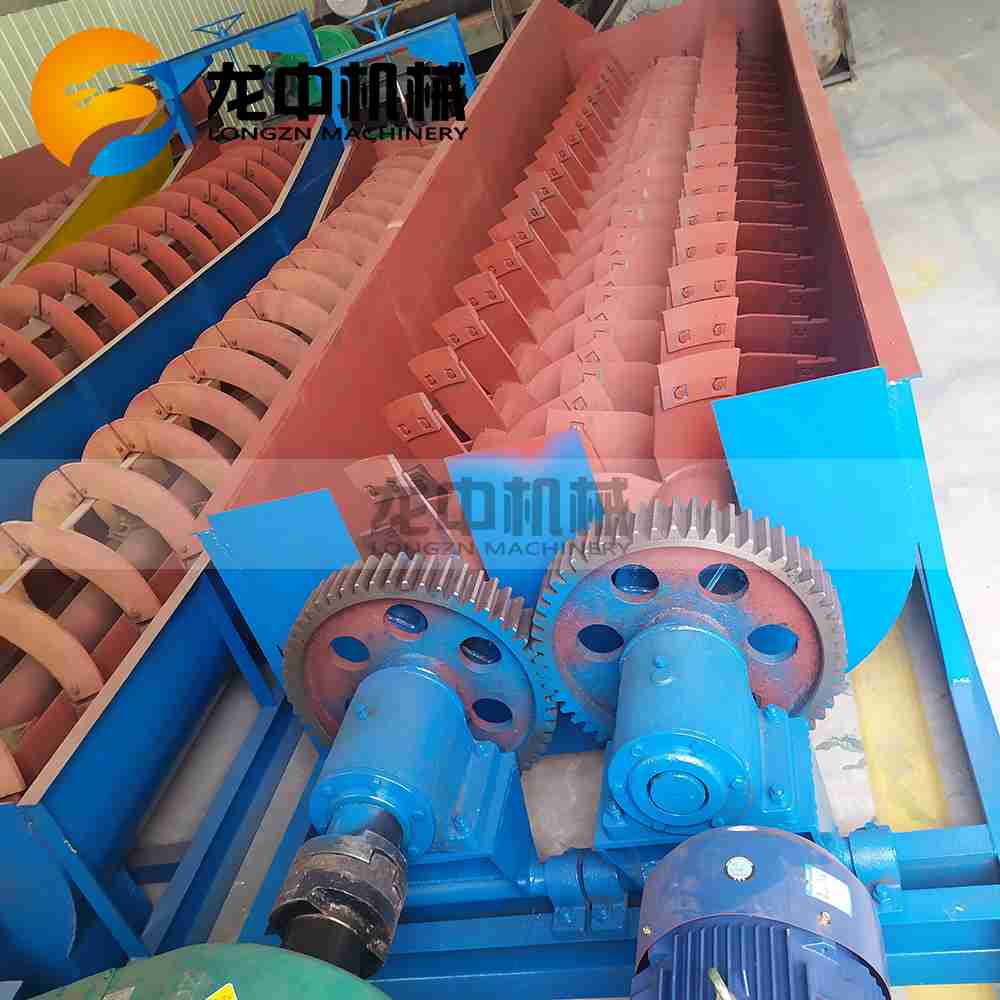

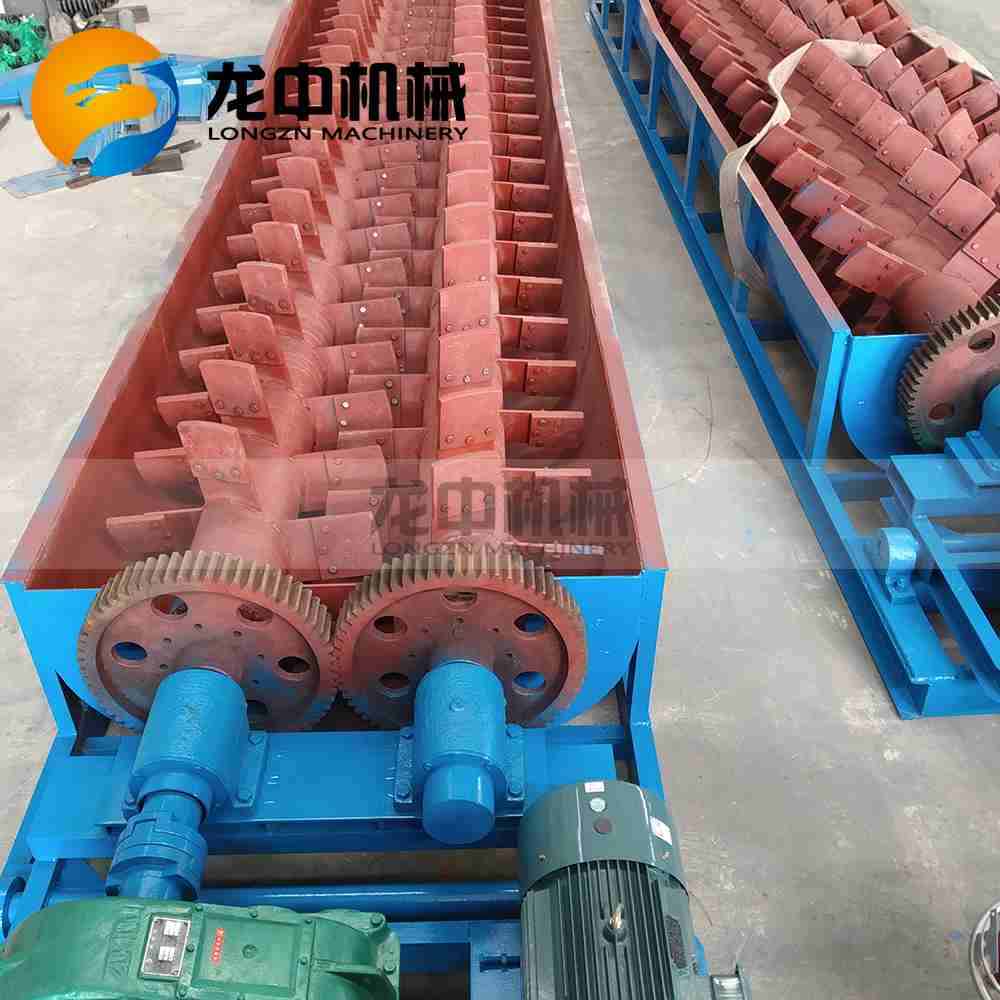

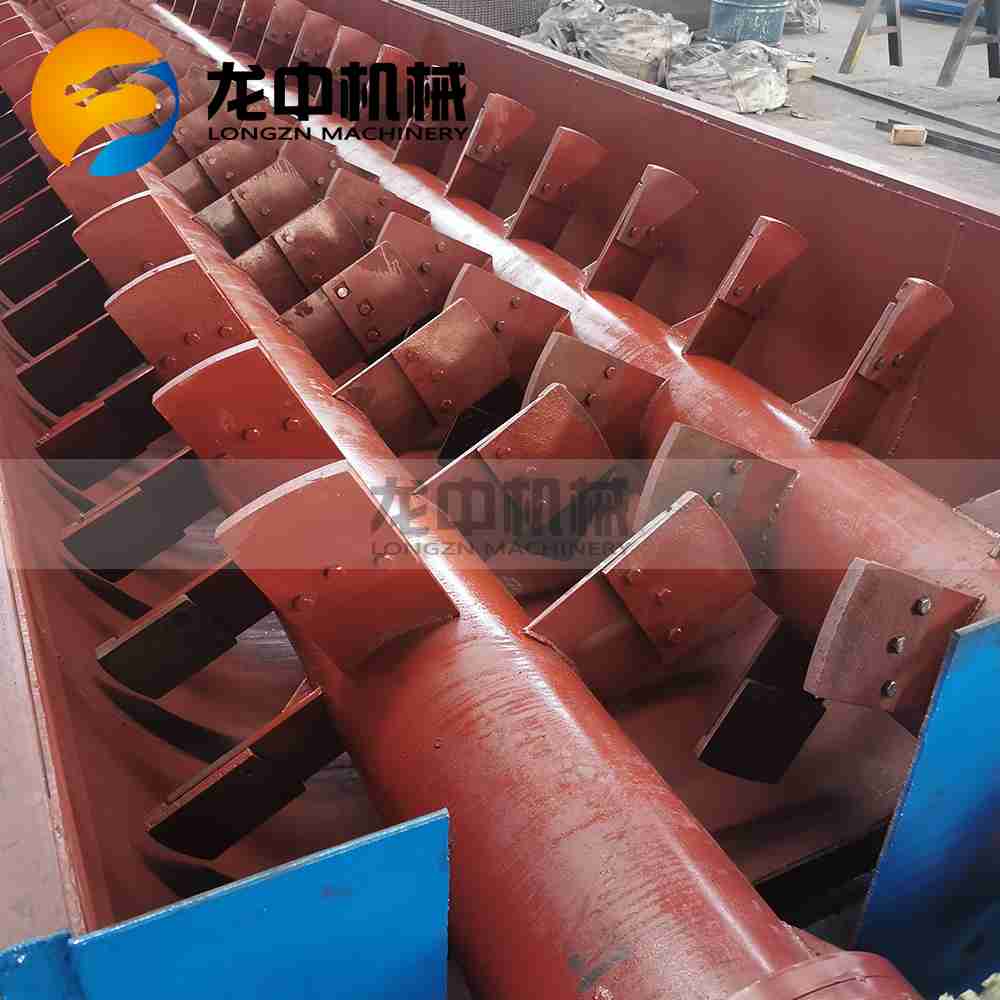

Log Washer Product Pictures:
Log Washer Technical Parameters:
| Model | Spiral Dia. (mm) | Rotating Speed (r/min) | Feeding Size (mm) | Tank Slope ( ° ） | Output （t/h)） | Power （kw） |
| 2RXL320 | Φ320× 3200 | 28 | ≤30 | ≤12 | 10 | 4 |
| 2RXL400 | Φ400× 4600 | 23 | ≤30 | ≤12 | 20 | 5.5 |
| 2RXL540 | Φ540× 4600 | 23 | ≤30 | ≤12 | 25 | 7.5 |
| 2RXL750 | Φ750× 7600 | 22.7 | ≤70 | ≤12 | 50 | 15 |
| 2RXL800 | Φ800× 7600 | 22 | ≤70 | ≤12 | 60 | 18.5 |
| 2RXL914 | Φ914× 7600 | 21 | ≤70 | ≤12 | 70 | 22 |
