Three Disc Magnetic Separator Product Overview
The 3 disc magnetic separator is applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite,
andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
Three Disc Magnetic Separator Working Principle
The three-disc belt separator (belt magnetic separator) comprises a feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system,
frame, and other components. The electric control section includes control components, voltage regulation, rectification, instruments, etc. It features compact structure, stable performance,
easy installation, and convenient operation and maintenance.

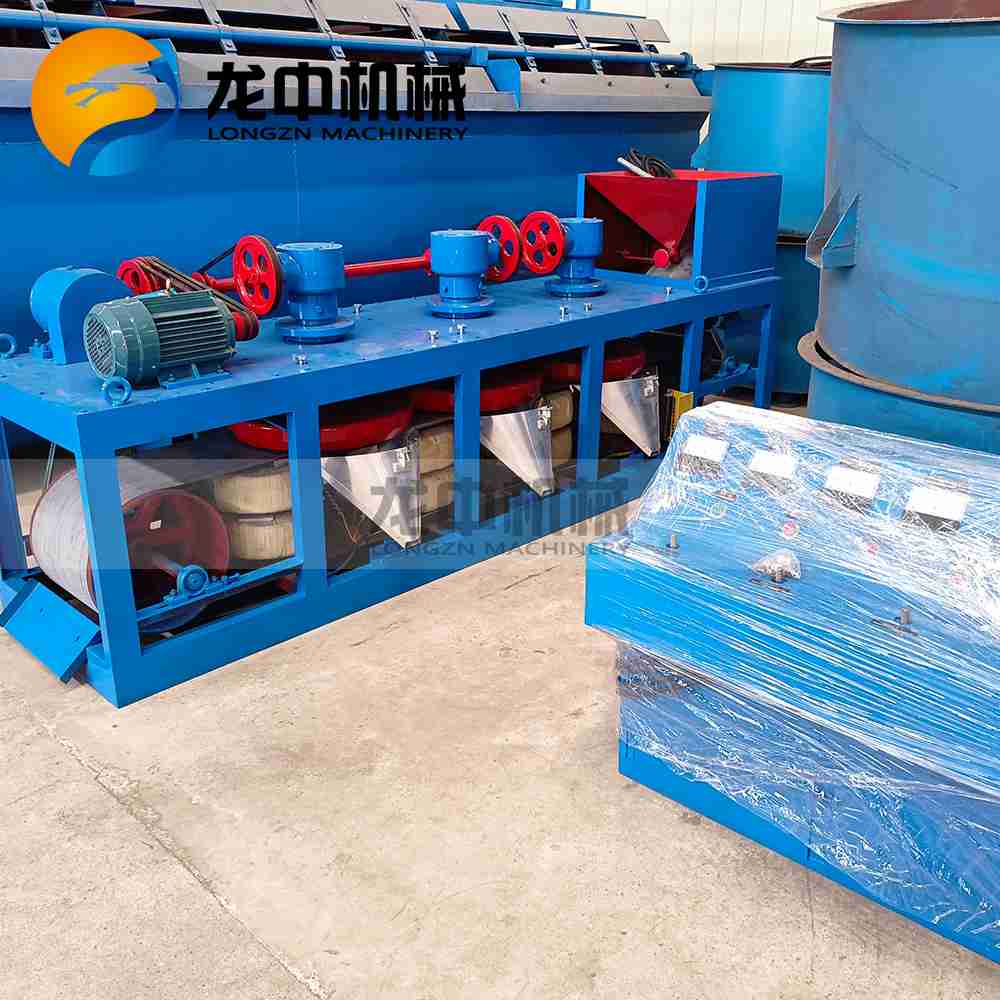

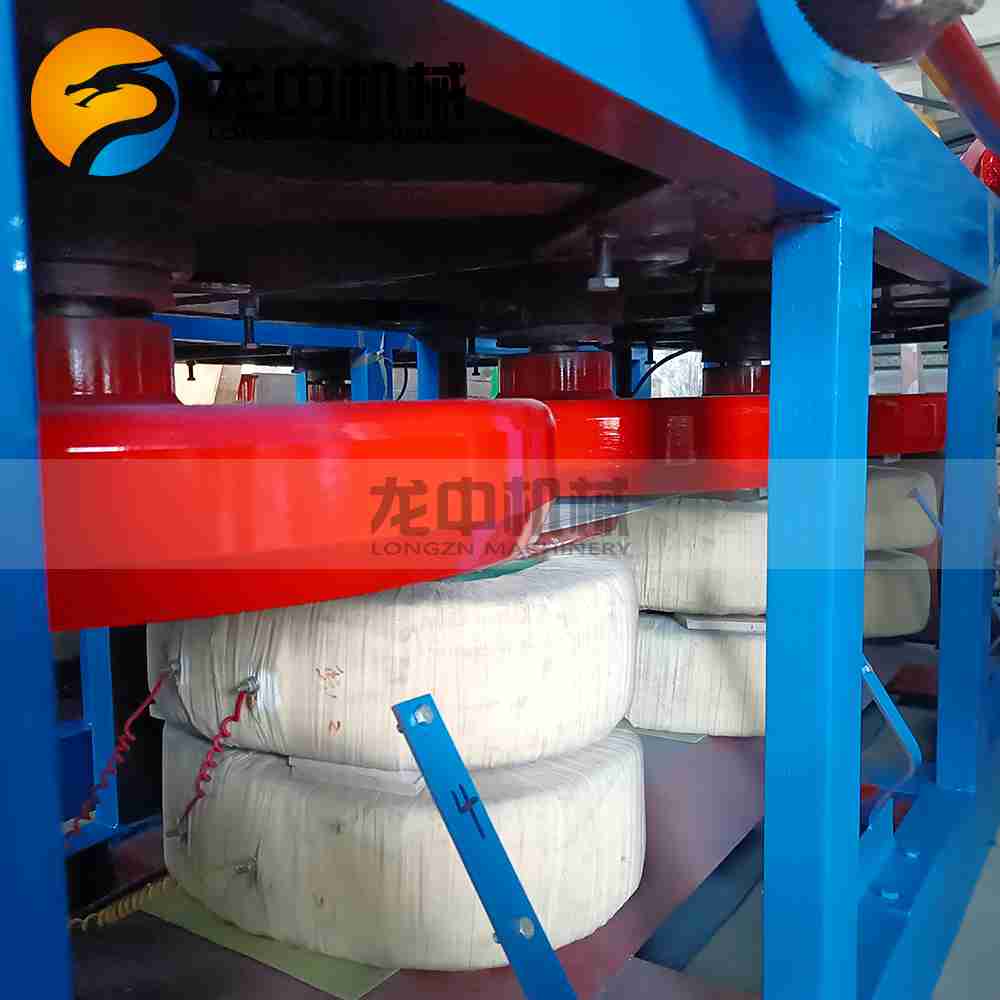

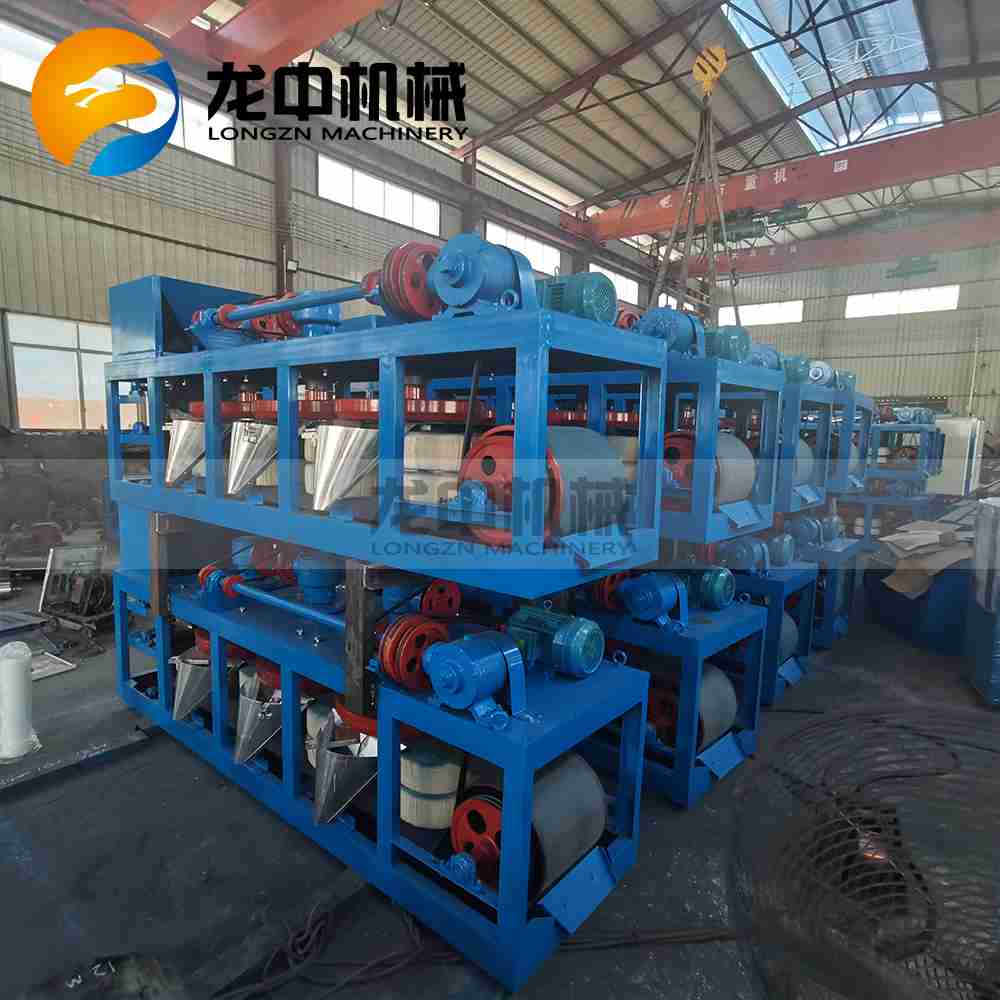

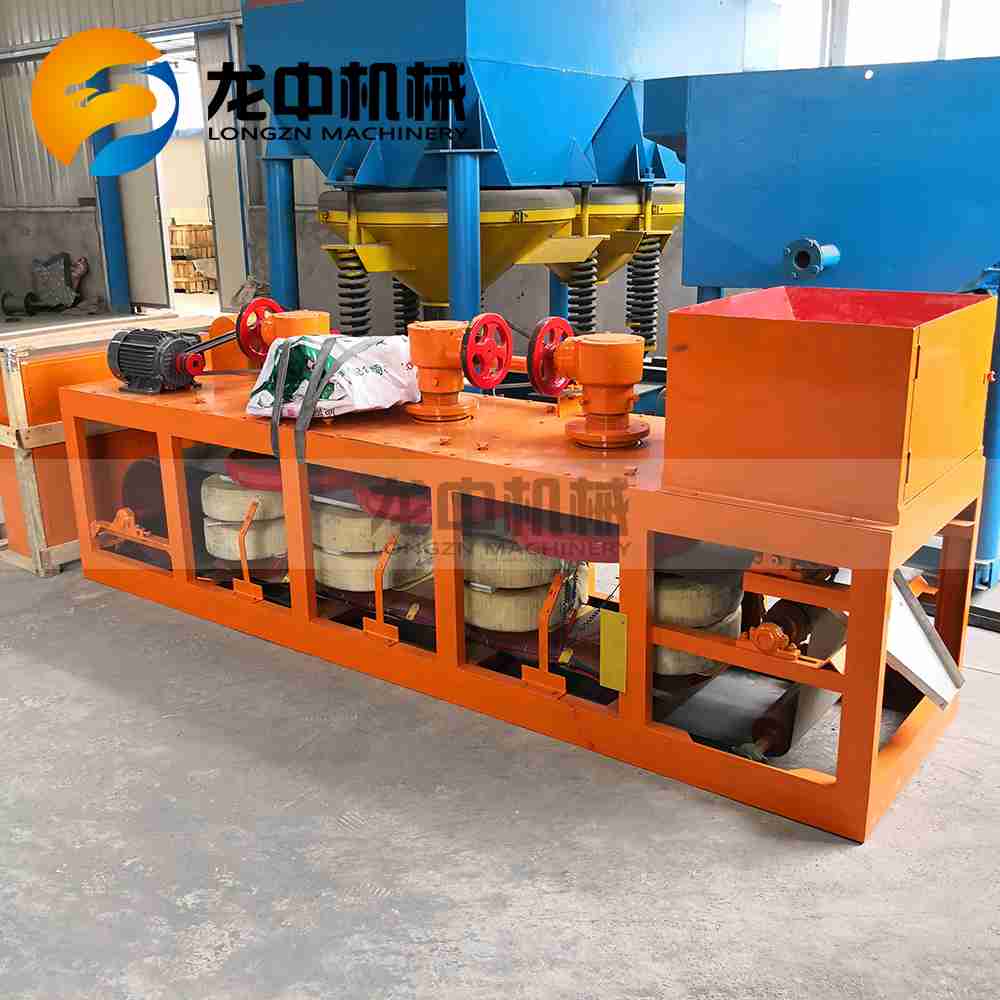

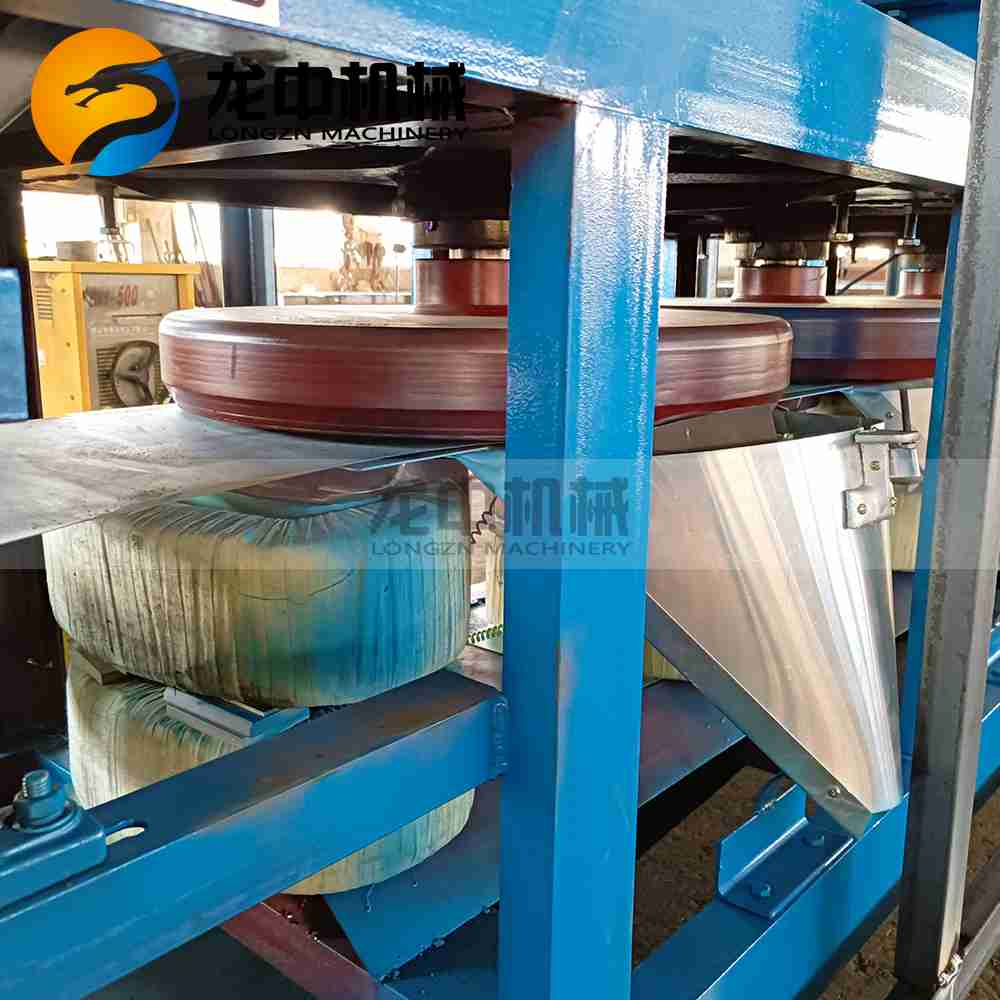

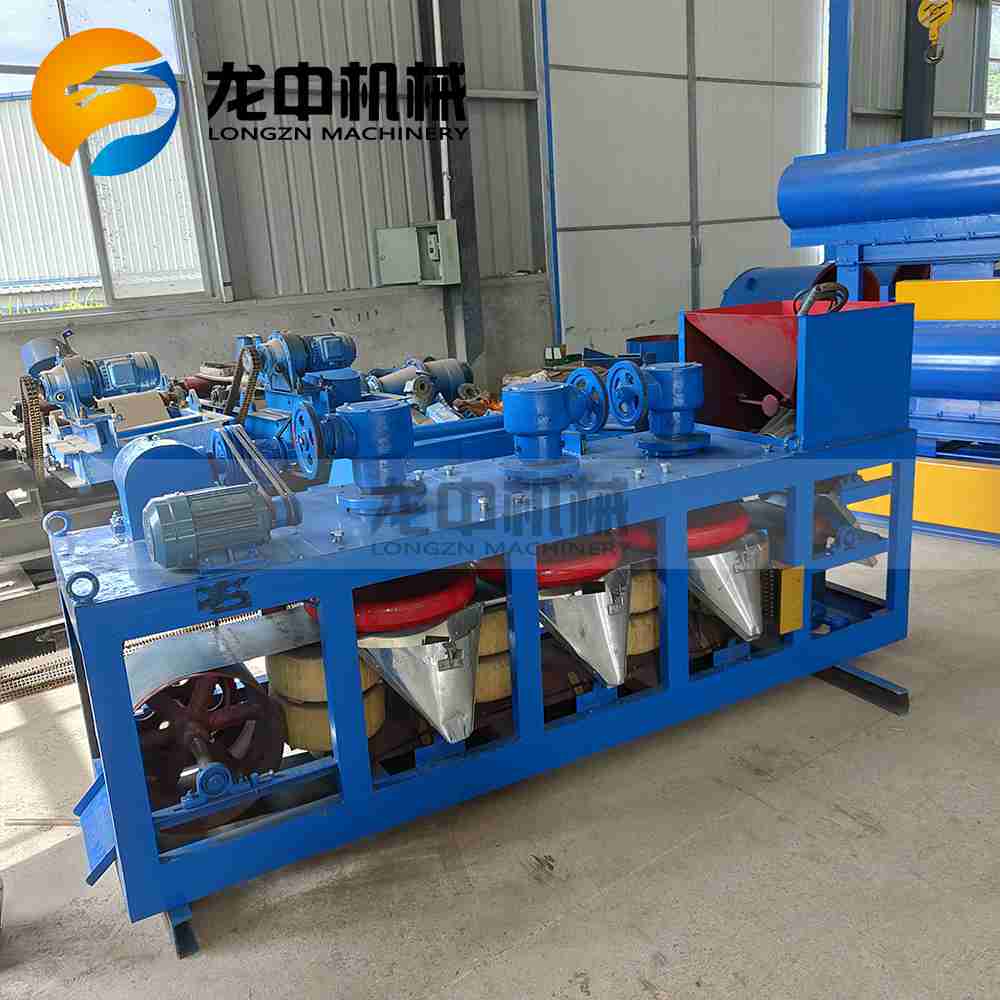

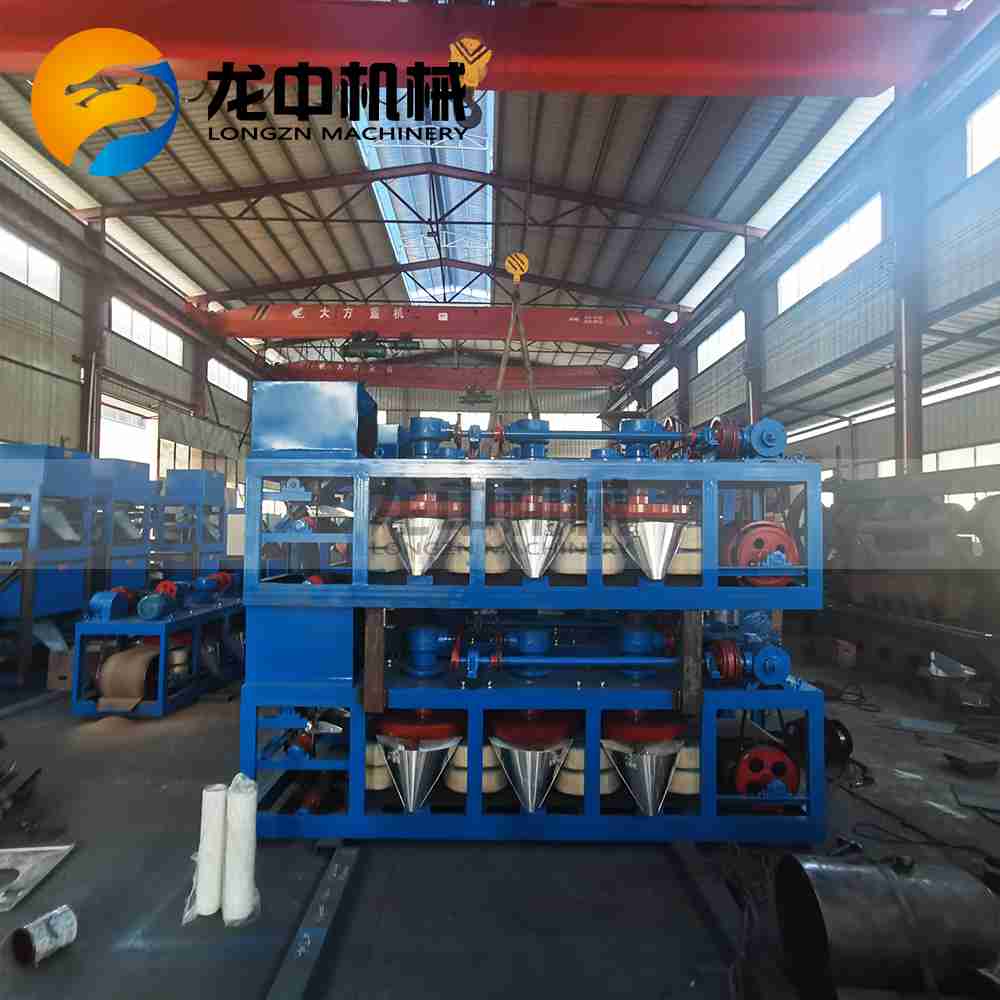

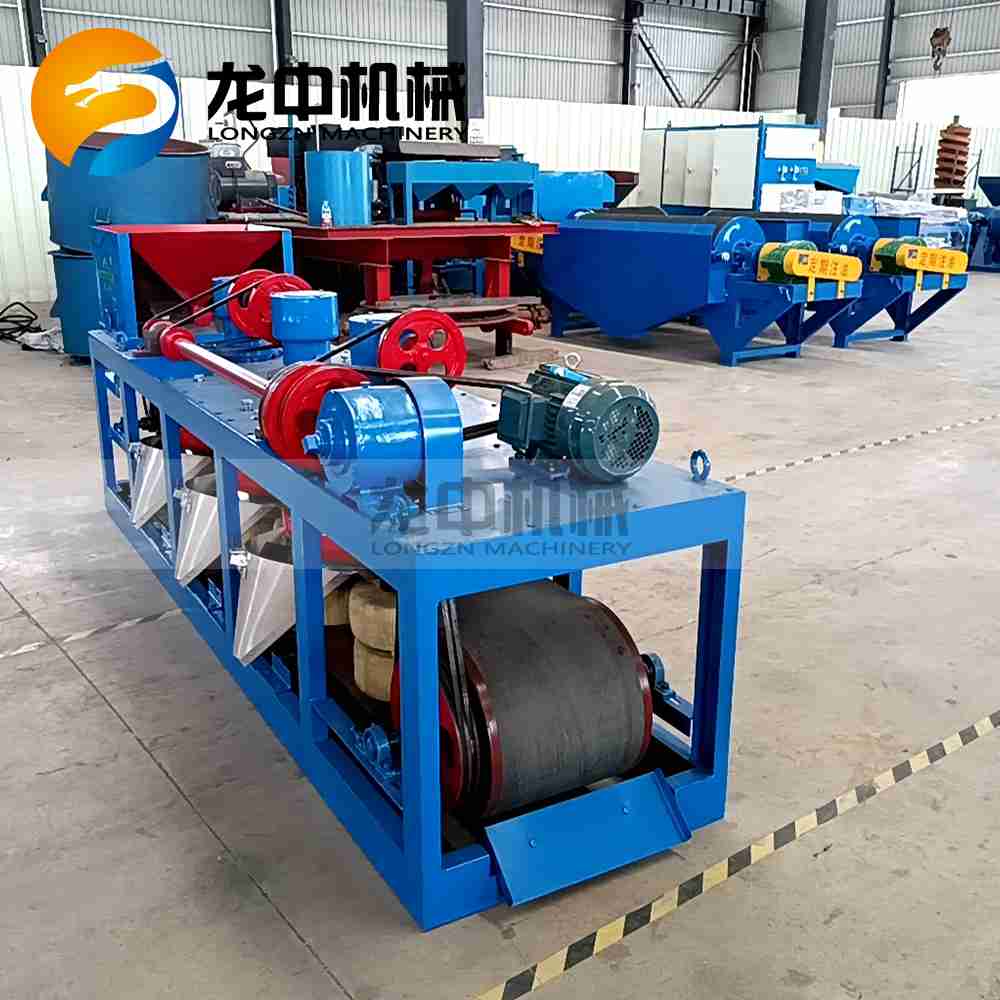

Three Disc Magnetic Separator Product Pictures
Three Disc Magnetic Separator Main Technical Parameters
Model | Unit | 3PC-500 | 3PC-600 |
Magnetic | Hauteur | Distance to beltsurface 2mm | Distance to beltSurface 2mm |
intensity | Disk teeth 1700 | Disk teeth 1800 | |
Number of magnetic disk | Piece | 3 | 3 |
Diameter of magnetic disk | mm | 500 | 600 |
Revolution of magnetic disk | r/min | 25-40 | 22-38 |
Power supply | V | 380 | 380 |
Exciting coil | Unit | 4 | 4 |
Matching motor | kw | 0.75 | 1.5 |
Exciting power | kw | 1.5 | 1.6 |
Duty rating | Continuous | Continuous | |
Feed width | mm | 210 | 300 |
Feed size | mm | ≤2 | ≤2 |
capacity | kg/h | 100-500 | 120-800 |
Overall Size | mm | 2800×800×1220 | 3200×870×1160 |
Weight | kg | 1900 | 2200 |
