High Productive Ball Mill Grinding Machine

Ball Mill Product OverviewBall Mill Grinding Machine is a type of grinder used to grind materials into an extrem

Product Details

Ball Mill Product Overview

Ball Mill Grinding Machine is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry.

Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.


Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such as cement, silicate,

new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.


Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity.

It also could be get very fine powder such as 1500 mesh together with air classifier machine.

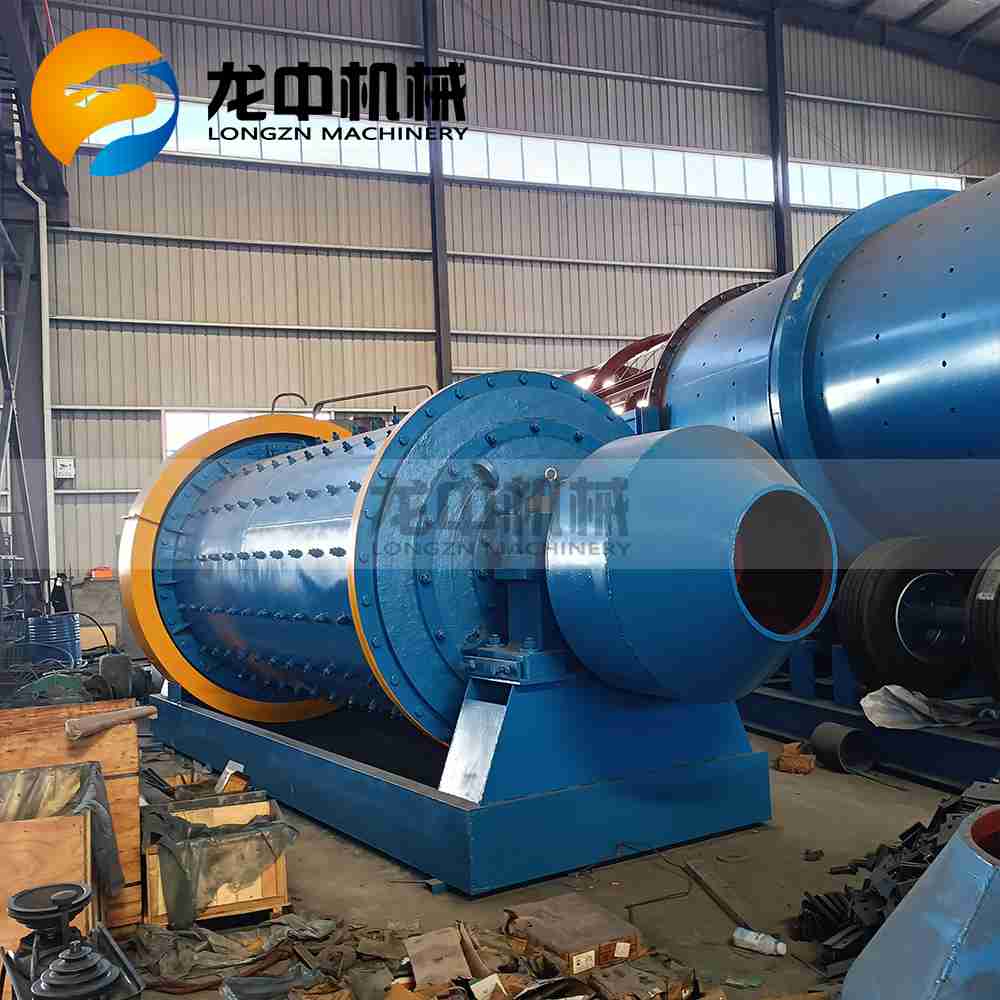

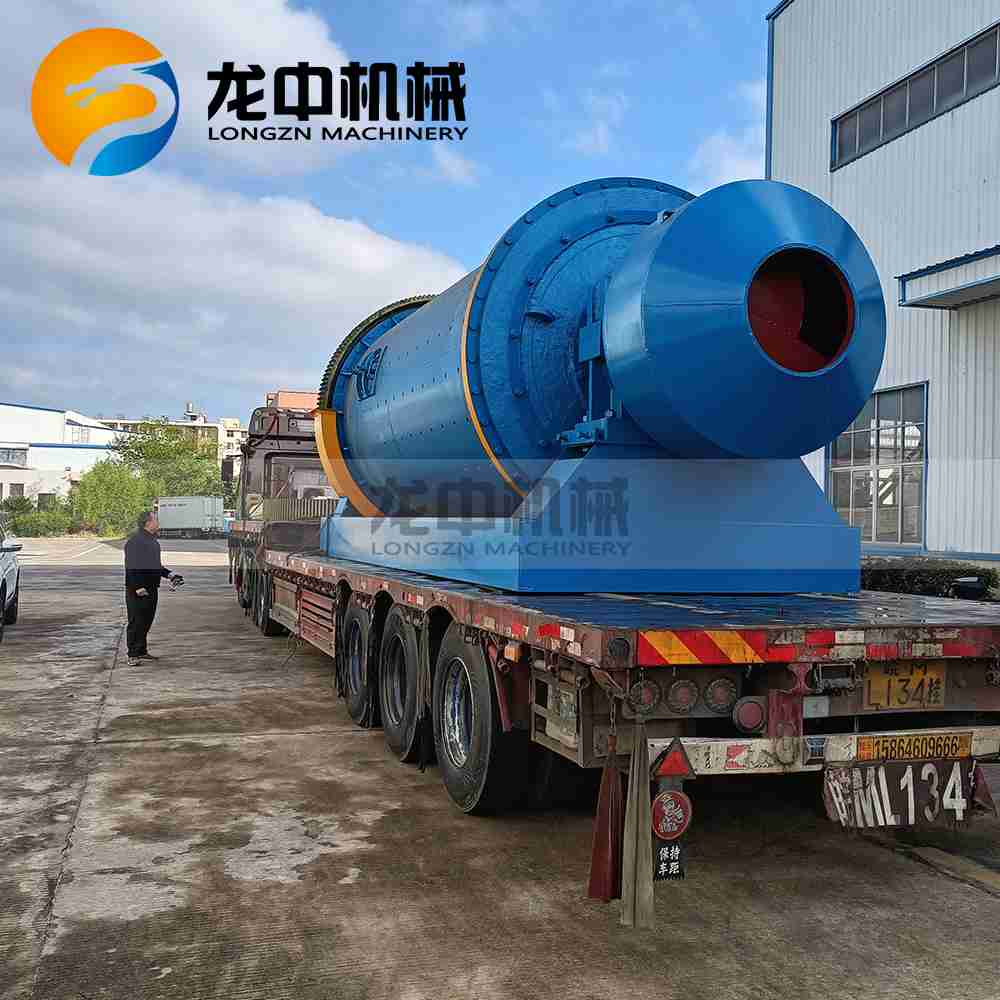

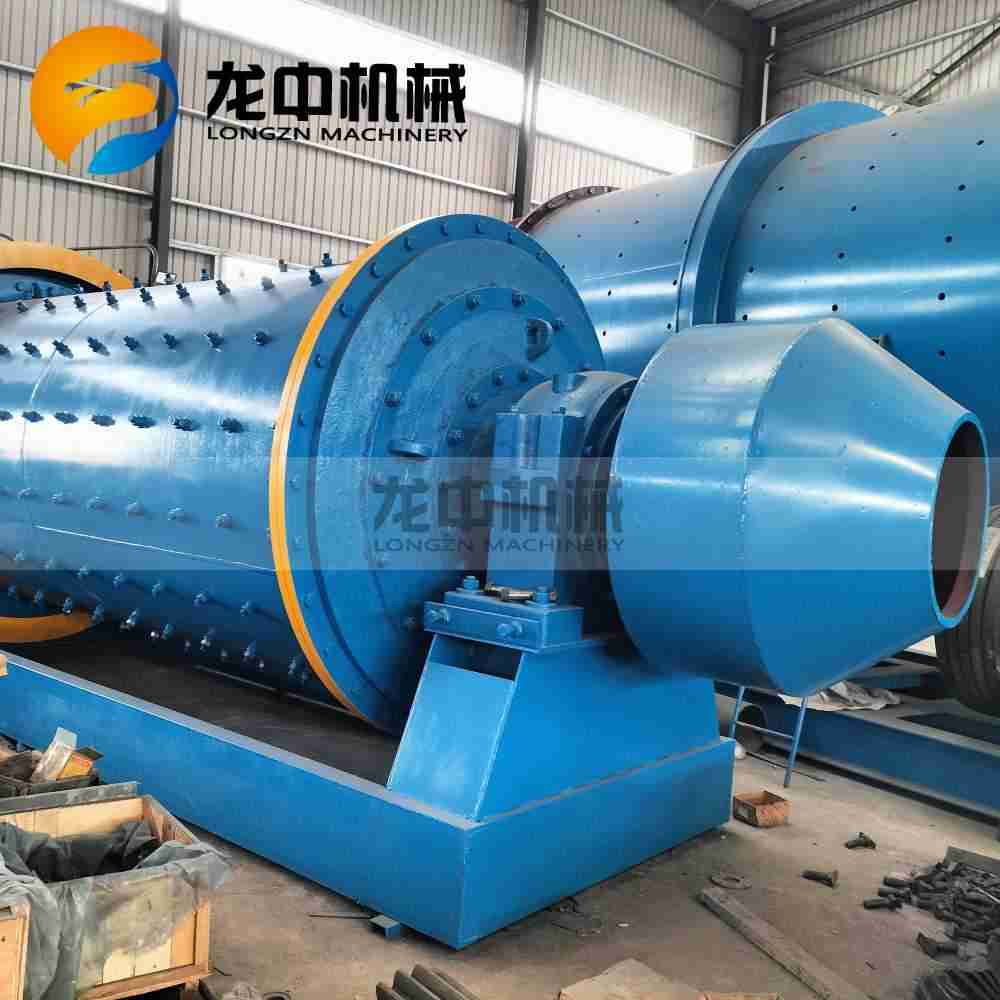

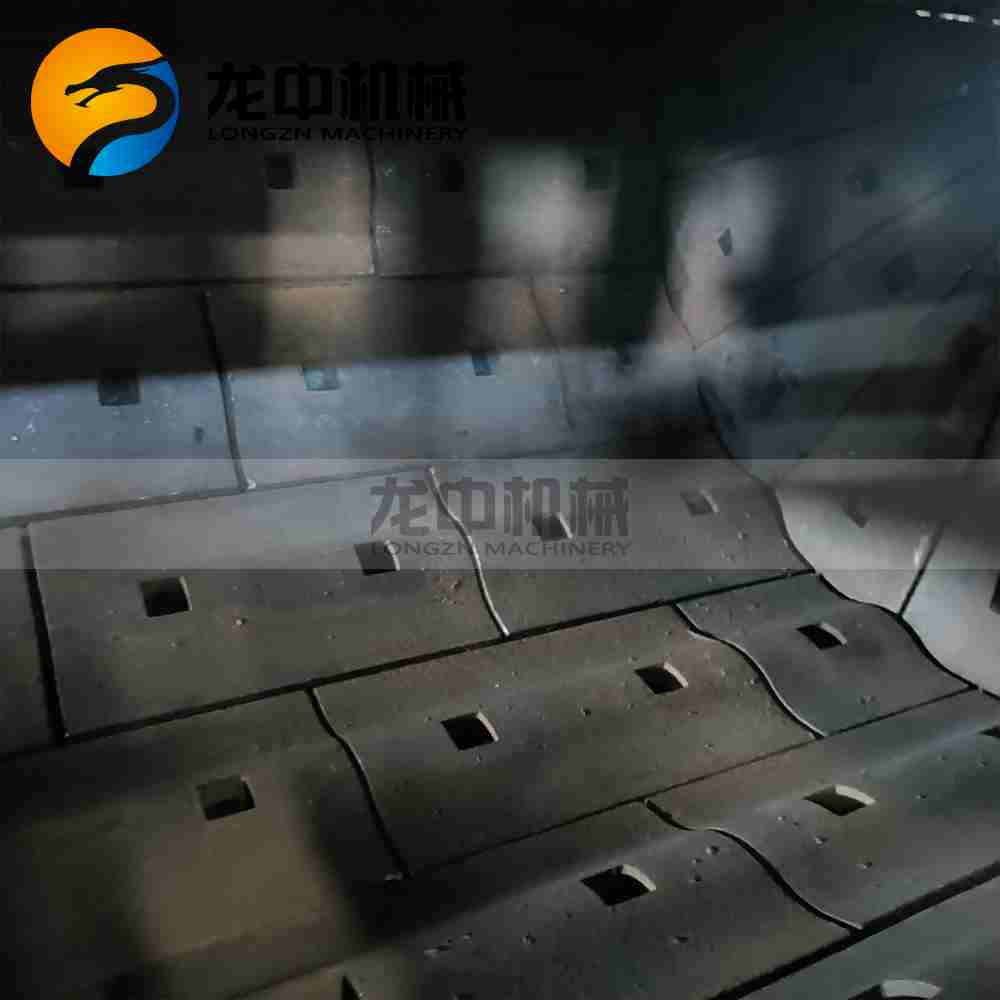

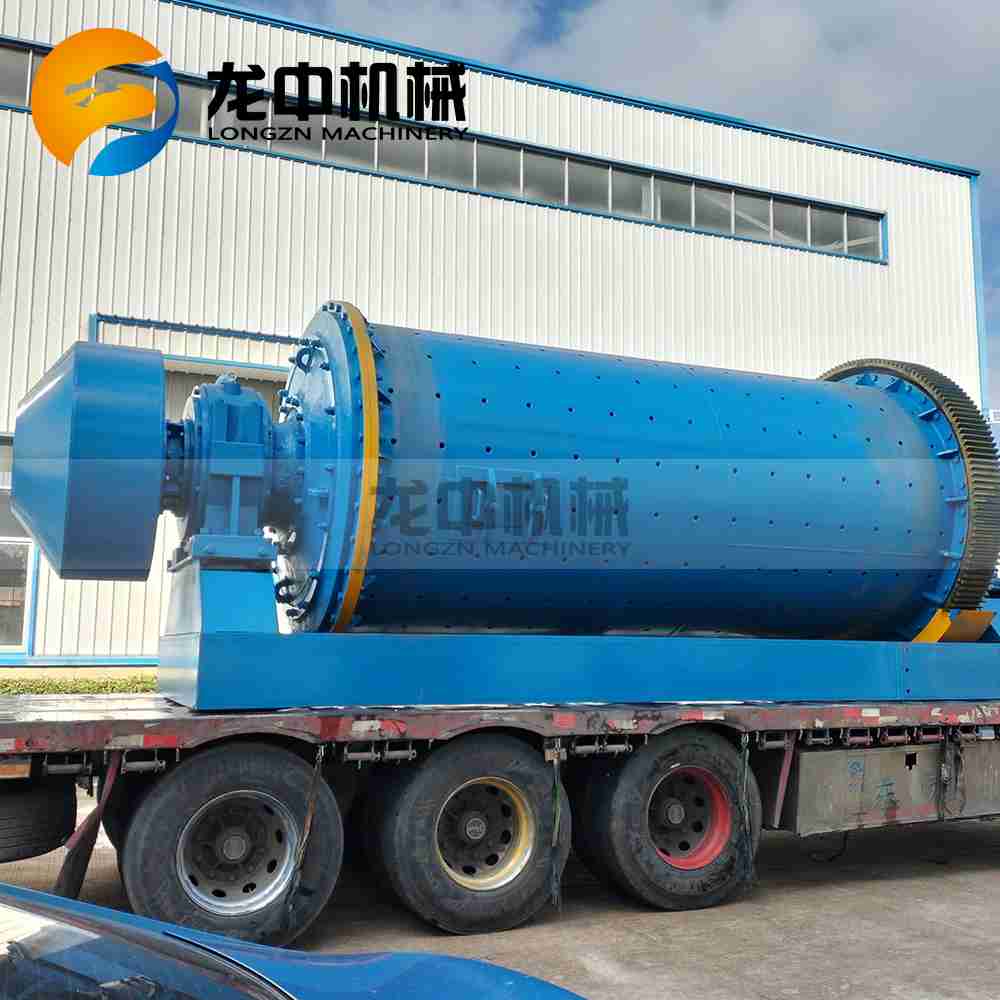

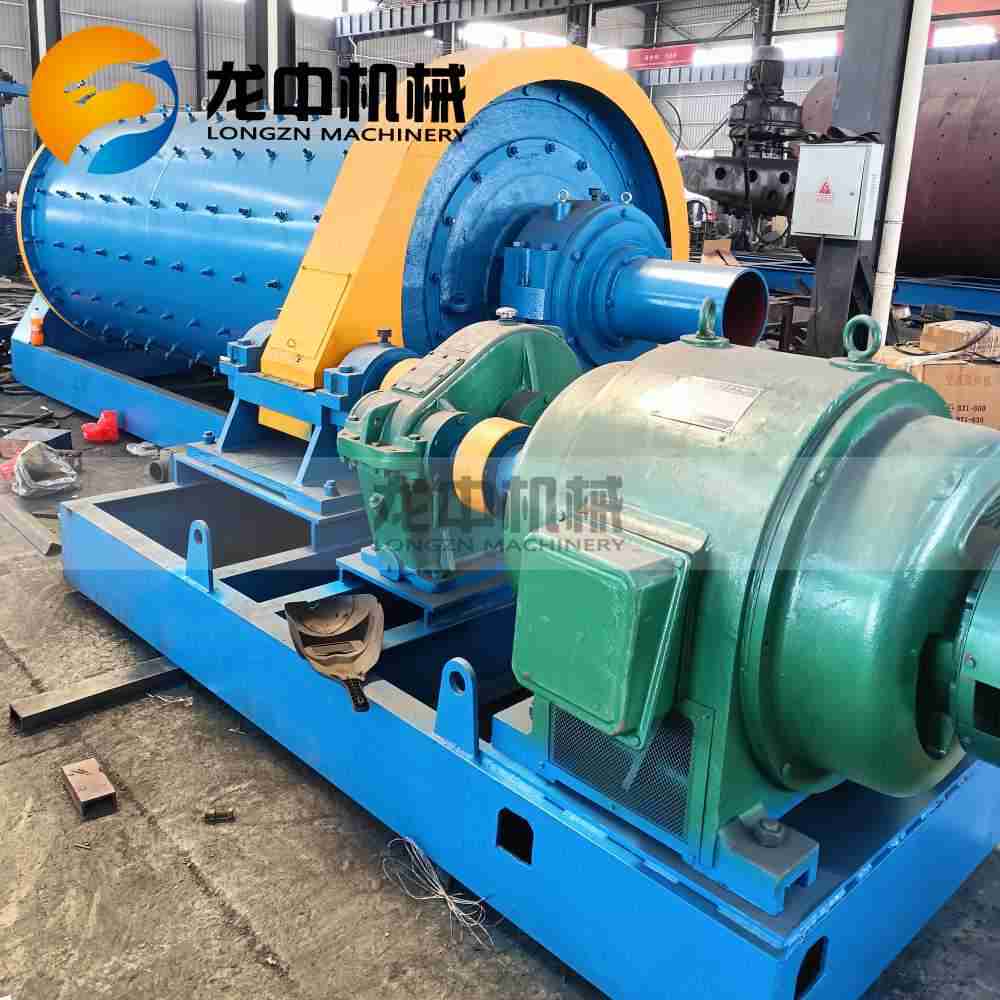

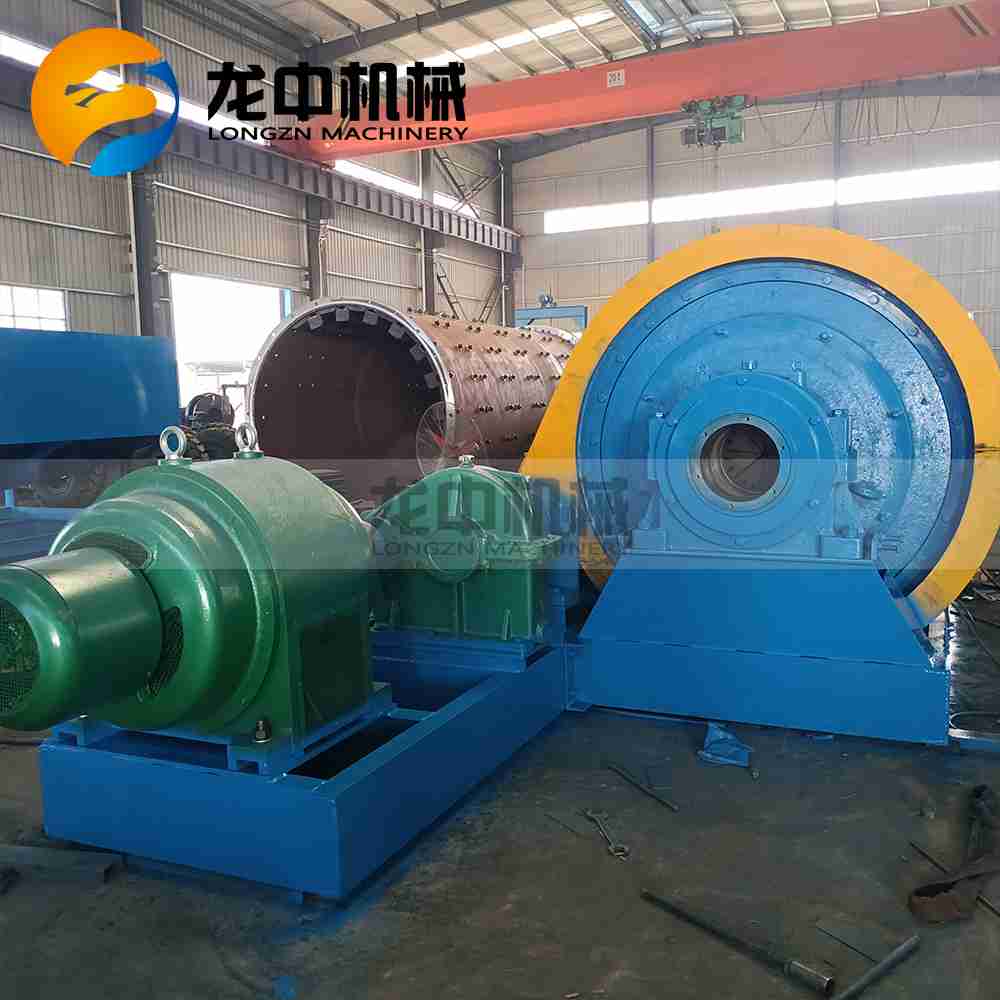

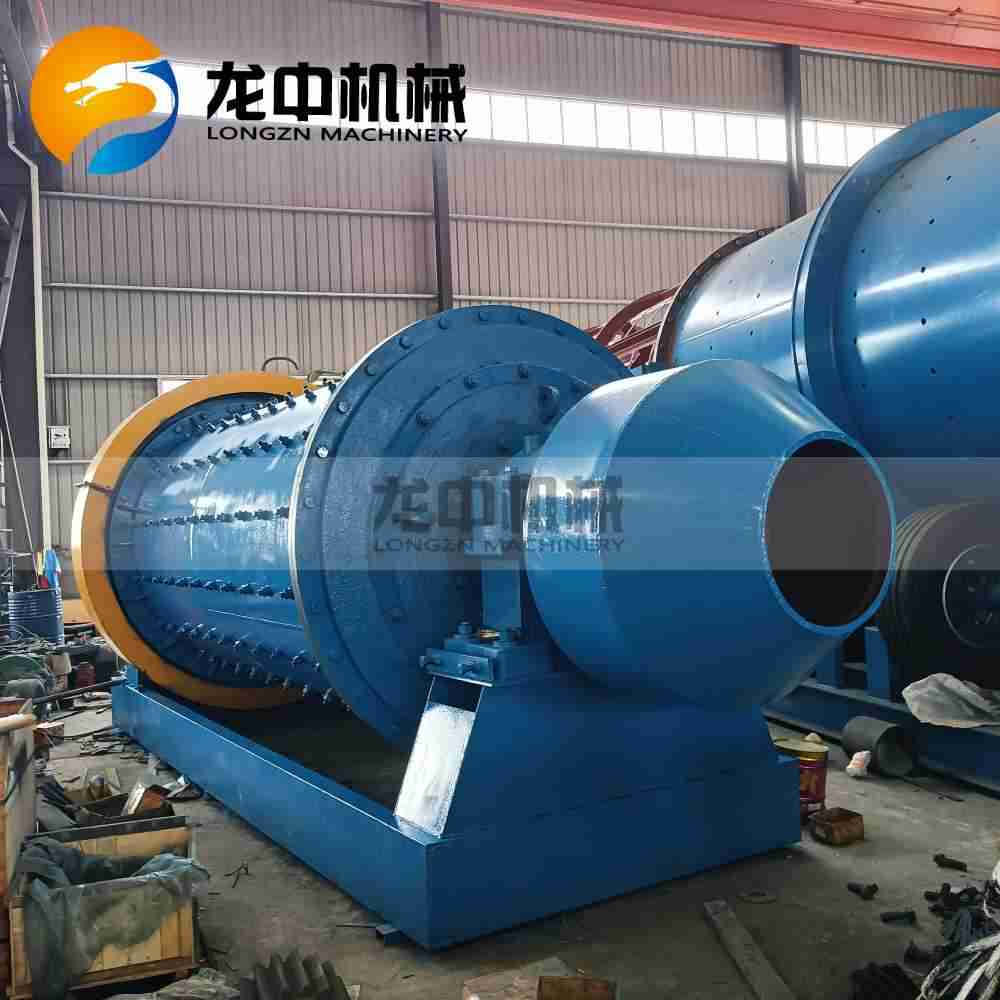

Ball Mill Product Pictures

ball mill 3.jpg

ball mill 1.jpg

ball mill 2.jpg


photobank (2) (1).jpg

photobank (1) (1).jpg

photobank (3) (1).jpg

Ball Mill Main Technical Parameters

Model No

Rotation speed (r/min)

Max ball load (t)

Capacity (t/h)

Power (kw)

Dimension (mm)

Weight (kg)

Φ900×1200

41.6

1.1

0.3~0.9

11

3843*1850*1400

4210

Φ900×2100

41.6

1.8

0.6~1.5

15

4743*1850*1400

6660

Φ1200×2400

35.1

4

1.6~4.1

37

5540*2300*1850

10020

Φ1200×2800

35.1

4.6

1.9~4.8

45

5940*2300*1850

10935

Φ1500×2400

30.7

7

2.8~6.5

55

6830*2930*2060

15430

Φ1500×3000

30.7

9

3.5~8.0

80

7430*2930*2060

16843

Φ1500×4000

30.7

11.11

4.8~10.5

110

9030*2930*2060

19103

Φ1500×4500

30.7

13.5

5.5~13.5

130

8930*2930*2060

20000

Φ1830×3600

25.04

15

4.0~21.5

155

9056*3654*2250

31600

Φ1830×4000

25.04

17

4.5~24

155

9456*3654*2250

32700

Φ1830×4500

25.04

19

5.2~26.0

180

9856*3654*2250

34210

Φ1830×5600

25.04

21.9

7~35

245

10956*3754*2250

39290

Φ2100×2200

23.8

15

3.0~22.0

150

7775*4060*3400

38793

Φ2100×3000

23.8

20

4.0~30.0

180

8475*4060*3400

41965
