Vibrating Screens in Mineral Processing

In mineral processing, vibrating screens are essential separation equipment primarily used in the crushing and screening stages. They perform crucial tasks such as pre-screening before crushing, size separation between crushing stages, and final product grading. These robust machines can handle a vast array of minerals, including iron ore, copper, gold, coal, limestone, granite, and various industrial sands.

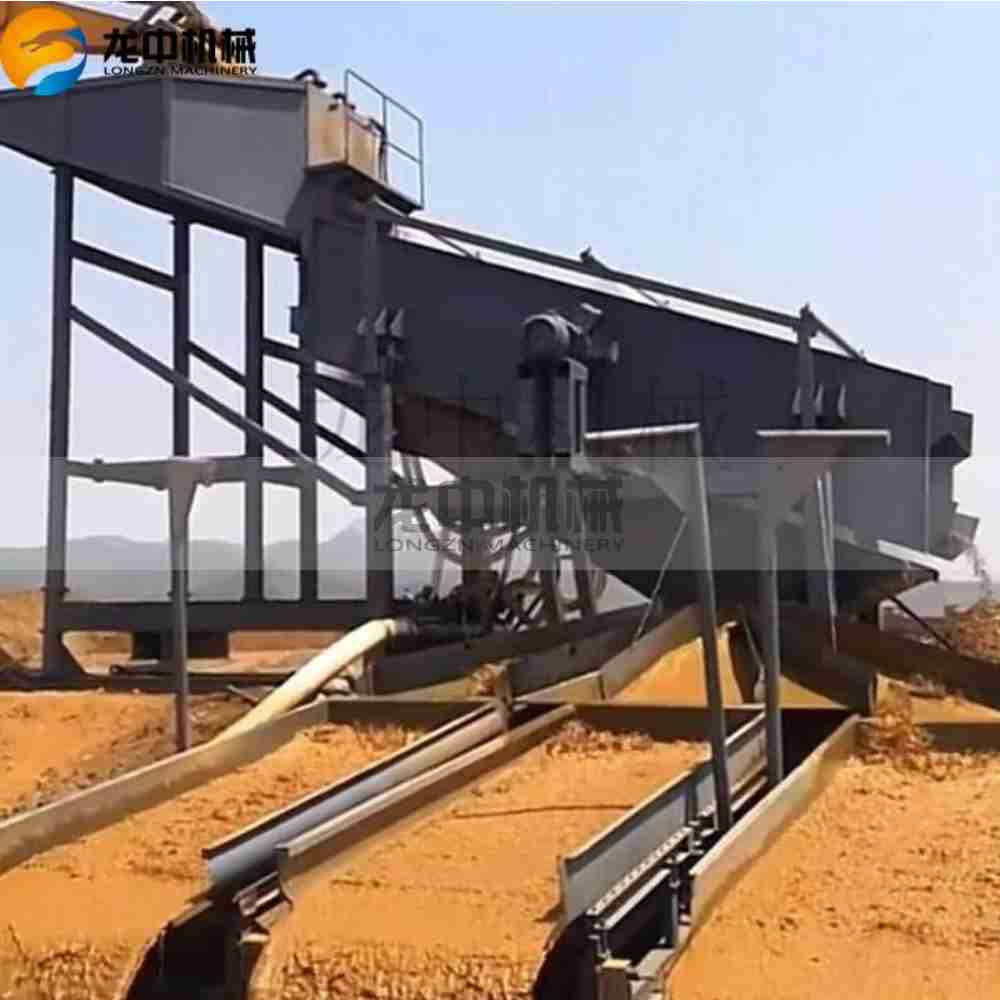

Vibrating screens are ubiquitous across almost every mineral processing line. They are integral to crushing circuits, grinding and classification circuits, and coal preparation plants. Specific configurations like grizzly feeders are commonly employed at the very beginning of a processing line for primary scalping of run-of-mine ore.

The core working principle involves a vibratory generator (often an eccentric shaft or vibrator motors) imparting rapid, multi-directional motion to the screen deck. This vibration stratifies the material, causing smaller particles to pass through the screen apertures (undersize), while larger particles convey across the deck and discharge as oversize. Key advantages include high processing capacity, efficient and accurate particle size separation, compact design with a small footprint, low power consumption, and ease of maintenance.

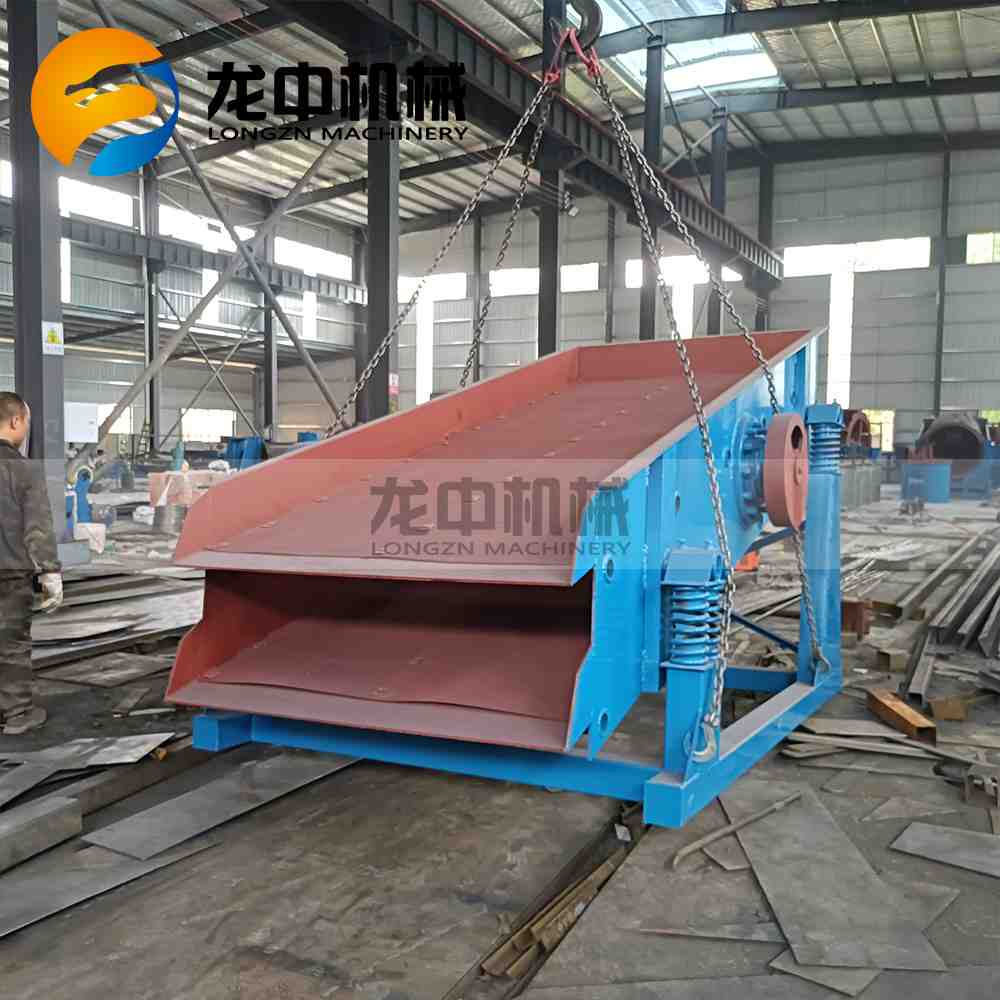

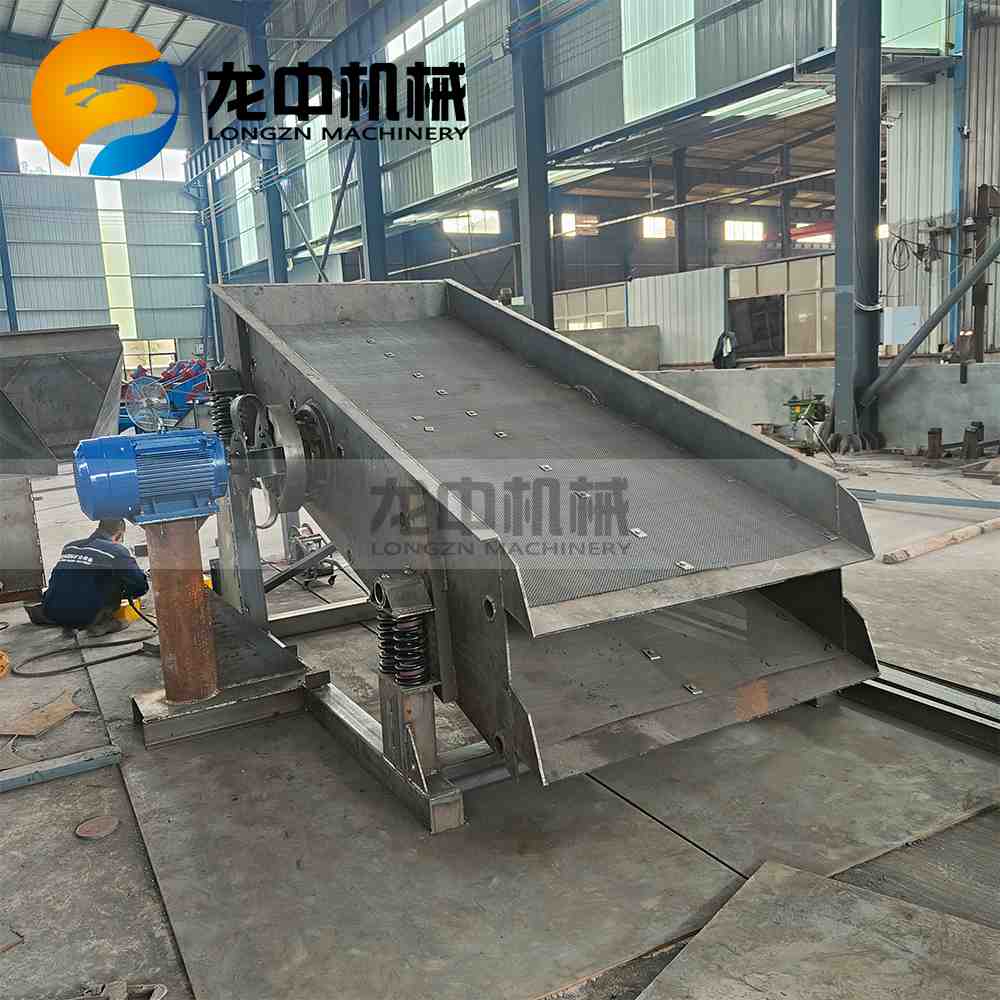

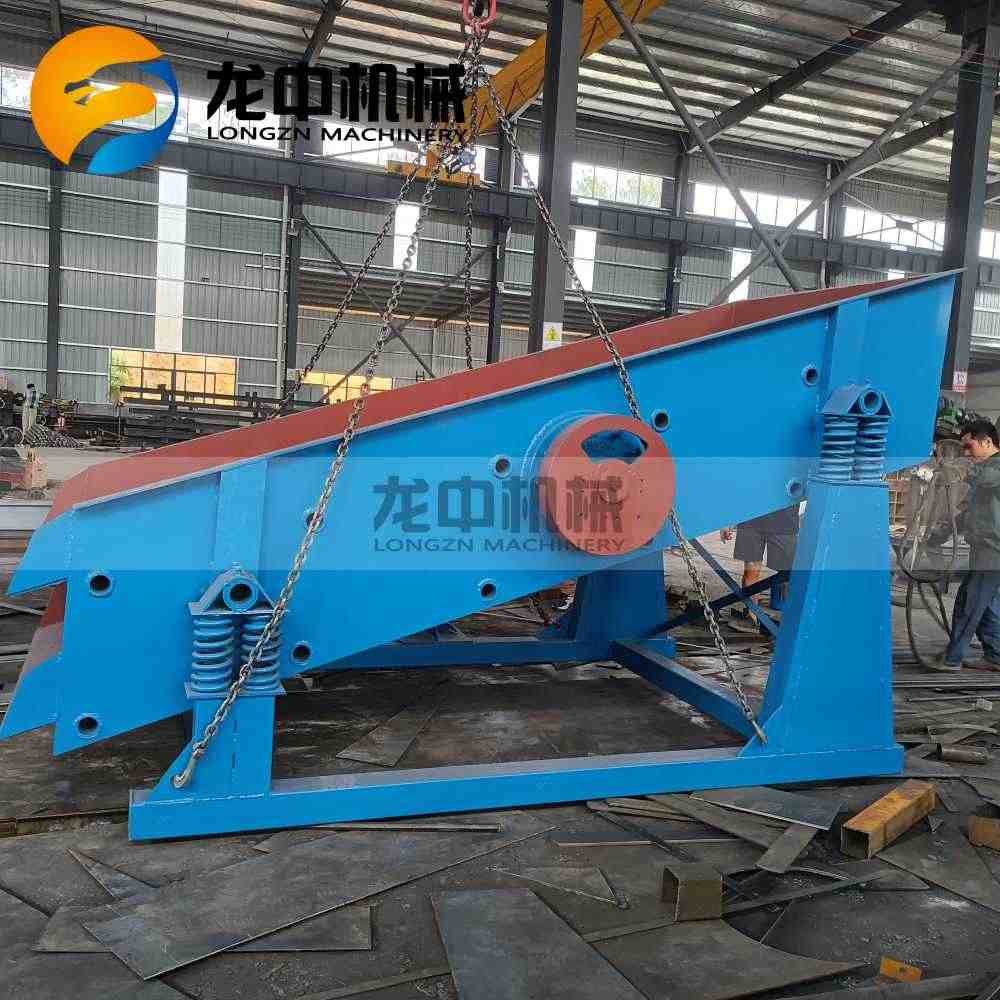

Structurally, a standard vibrating screen consists of several main components: a rigid screen box or frame that supports the entire assembly; one or multiple screen decks with interchangeable wire mesh or polyurethane panels; a vibration exciter unit that generates the necessary motion; supporting springs or rubber mounts that isolate vibration from the structure; and an electric motor coupled with drive components to power the system. This robust yet straightforward design ensures reliable operation in demanding mining environments.
